PP PE Plastic Film Washing Line and Plastic Recycling Machine
machine details :
PE, PP film washing linePlastic film cutting, washing, recycling machine with high output and excellent clean ability (500kg/hour to 6500kg/hour)Whole plastic recycling line is used to crush, wash, dewater and dry the PP/PE film, PP woven bagSimple structure, easy operation, large capacity, energy-saving, safetyAutomatic controlling, compacted structure, excellent production ability, perfect clean abilityProcessing material: food packaging film, agriculture film, green house using film, film used in oil field, PP bag, PE film, woven bag, LDPE shrink film, nature film or heavy printed film, cement bag, oily bag, dirty bagProcessing material: Washing line can be used for PP woven bag, film and PE trash bag, film, packing material and some other loose material, agriculture film (1mm), industrial LDPE film with milk and powder, LDPE green house film
Work process:
hydraulic shear-shredder-spiral feeder-high speed frcition washer-desand machine-spiral feeder-twin shafts patting washing system-spiral feeder-floating tank-spiral feeder-horiozontal feeder-squeezing dryer system
Advantages:
Professional design team with 30-year experiencesWashing line size can be design as customer needApplying to various materialHigh efficiency and high performanceSave your labor and electrical costHigh processing capacity: 500-3500kg/hourPLC integrated and separated control on each machineTouchscreen panel, easy operation, monitor and maintenanceMachine raw material: high-quality 304 stainless steel, hard and bear resistance, make sure the long using lifeEnsure no second pollution to flakesExcellent clean abilityAdditional information:
Floating, washing tank can be changed as per customer's needsMachine component like shredder, crusher also add as per customer's needsWashing line size can be prolonged and short as the process material dirty content like oil, sand, inkNow, wiring dryer or screw dryer are available, dryer system is also according to the processing material thicknessIn general, up 50 microns, wiring fried
Double shaft shredder, shredding the waste HDPE/PP/LDPE bottles into pieces size as 60-80mm.
Shredded waste bottle flakes entering pre-washer system by belt which equipped with metal detector to remove metal.
Pre-washer: this design mainly remove the most dusty, soil and sand first. Conical pre-washer under the bottom to ensure that waste sand or impurity or sediment can be discharge smoothly. After this pre-washing, it can protect the crusher blades long-life and easy washing in the next step.
Spiral loader +crusher+washing tank+ friction washer +centrifugal drier.
We also can make and design special according to client’s request based on different waste materials. Such as choose Trommel, coloring sorting, optical sorting, etc.
Product Tags:
|
|

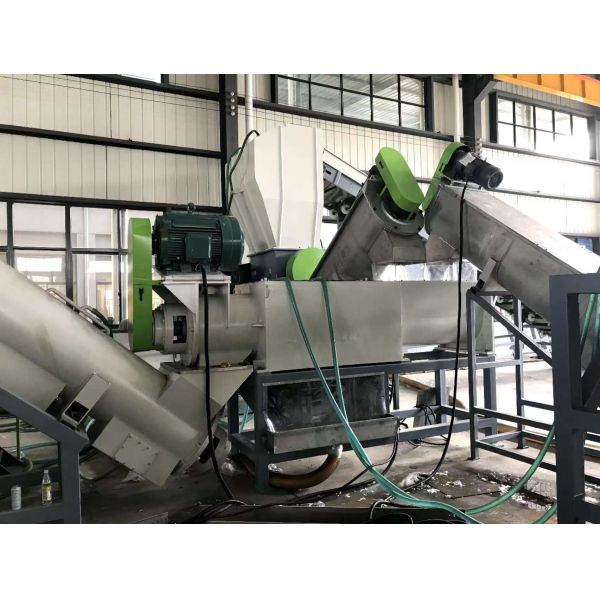

PP PE Plastic Film Washing Line and Plastic Recycling Machine Images
|
