Compact and Stable Crushed HDPE PP Flake Plastic Pelletizing and Recycling Machine
Applications of compact and stable crushed HDPE PP flake plastic pelletizing machine:
Applicable plastic materials: PE, HDPE, LDPE,PP, PS, ABS,etc
Material shapes: washed or crushed rigid bottle flake, shampoo bottle flake, milk bottle flake, plastic car bumper flake, HDPE blue jar crushed flake
size: 10mm to 20mm, 15mm best
Capacity varies from material melt index
Final pellets can be used for injection, extrusion and blown grade
Note: depending on different material properties, various downstream equipments are needed.
Features of crushed rigid flake single screw extruder:
Higher output, lower consumption, more automatic
machine operation stable and mature technology with 35 years design experiences
twin vacuum or two separated degassing for single stage extruder
Full automatic screen changer (back flush filter or disc type filter) as optional part with much labor saving
20% more output than our first -generation products
15% less consumption than our first -generation products
2 labors operating the whole line, one is for machine operation, the other manage the material feeding
10 years of machine service life
SJ model single stage pelletizing machine
| Model | SJ90 | SJ100 | SJ130 | SJ150 | SJ160 | SJ180 | SJ200 |
| Raw Material | Squeezed PP,PE film, HDPE bottles flakes, rigid ABS,PS, PC |
| Capacity(kg/hr) | 200 to 300 | 300 to 400 | 500 | 500 to 600 | 600 to 800 | 800 to 1000 | 1000 to 1500 |
| Main motor(kW) | 55/75 | 90 | 132 | 160 | 185 | 200 | 250 to 315 |
How it works
1.Spiral feeder uploading the material by timer
2.Feeder and extruder is controller by inverter,
3.Different L/D for different material
4.Nature degassing, vacuum degassing adopting for moisture
5. Non-mesh filter, single plate double position screen changer with ensure large filtering area
5. horizontal waster ring pelletizing way, vertical water ring pelletizing way, pull strip pelletizing way and underwater pelletizing way can be choosed
6. VOC system and automatic package system also can be equipped with customer need
Machine Detail Pictures
screw loader manage the material feeding into main extruder feeder

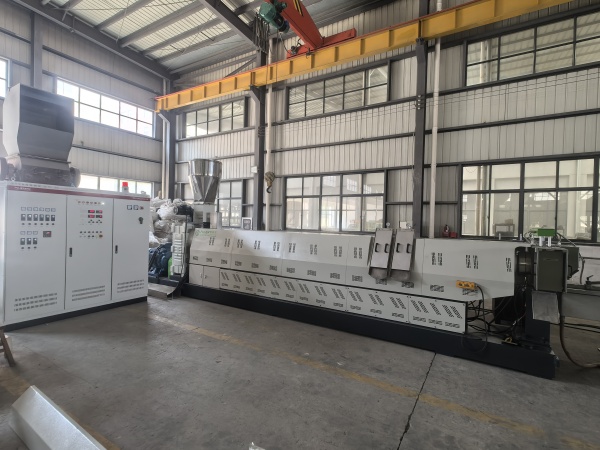

Main extruder with twin vacuum degassing
Double position hydraulic screen changer with large screen changing square
( non-mesh filter screen changer as optional part, which can enhance the machine automation greatly)
Two stage connection part for efficiency degassing
Second stage extruder
Electrical control system (system program remote monitoring and transmission system)
General Information
| Model name | SJ |
| output | Plastic pellets/granules/resins/plastic raw material |
| Machine parts | Side force feeder, main extruder, hydraulic screen filter, second stage extruder, hydraulic screen filter,pelletizing unit, cooling system, silo, cabinet |
| Recycling material | washed PP/PE/LDPE/HDPE film, bag, fiber,flake |
| Capacity range | 100kg/h to 1200kg/h |
| Feeding way | Conveyor, screw loader feeding |
| Screw diameter | 75mm to 200mm |
| Screw L/D | 25 to 33, 10 to 20 |
| Screw raw material | 38CrMoAl or bimetallic |
| degassing | Natural degassing, vacuum degassing |
| Cutting type | water ring pelletizing way, pull strip pelletizing, underwater pelletizing way |
| Cooling type | Water cool, air cool |
| voltage | Customized |
| Optional devices | Metal detector, water cooling system, feeding silo, vibration system |
| Delivery time | 40 to 60 days |
| Warranty time | 13 months |
| Technical supports | Machine layout, installation layout, engineer oversea service |
| certificate | CE/ SGS/ TUV/ CO |
video link:
https://youtu.be/afZiszVrczQ?si=ucLGUBb-RjQ7lQlM
