PP PE Squeezer Dryer 1000kg Per Hour PP PE Films Washing Line

PP PE Squeezer Dryer 1000kg per hour PP PE film washing line

1. High Moisture Reduction

   • Removes up to 95% water content from plastic flakes/scraps, significantly reducing drying time and energy costs.

2. Energy Efficiency

   • Cuts thermal drying energy consumption by 50-70% through mechanical dewatering (vs. traditional thermal methods).

3. Preserves Material Quality

   • Prevents polymer degradation by eliminating prolonged high-heat exposure (critical for PET, PP, HDPE recycling).

4. Compact Footprint

   • Requires 30% less space than centrifugal dryers or hot-air systems.

5. Low Maintenance

   • Robust stainless-steel construction with < 0.5% annual downtime for wear parts replacement.

Please kindly check the below information:

The raw material picture before processing and the after processing

Application of the squeezer dryer:

Used in the PP,HDPE and LLPE film, such as agricultural film, greenhouse film, post-consumer plastic film, PE household waste film, PP woven bag cleaning and drying, etc.

Structure of the squeezer dryer:

It includes: motor, gearbox, screw, cylinder, heater and die mold, cutting device,wind transmission and material storage silo.

Principle of the squeezer dryer:

It uses the principle of extrusion dehydration. The rotating screw to push and squeeze the raw material to the die mould , and cut the material into about 10-60mm through the die mold and pellet cutting device. The moisture content after extrusion is within 3-5%. After pelletizing it will be blown into the material storage silo for extrude pelletizing. The final products will be the regular pellets.

Benefits of the squeezer dryer:

• Make the traditional film cleaning and drying simple. Without the dehydrator, raw material can be directly from the rinse tank.
• Expressed dry, 3% -5% of the material moisture can be used directly for granulation.
• Easy to operate, with automatic control.
• Screw and cylinder using 38CrMoA1A, nitride depth 0.5mm
• Good electric parts, such as Schneider low voltage electric parts and switch, Carlo solid relay.
• Strong after sale service.With one year guarantee time for the non-wear parts.

Models:

Since many years tests and customers feedbacks, we make great improvement on the squeezer to make sure it run stable and make high performance.

Below is some pictures:

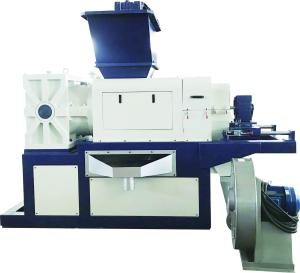

1 complete set of squeezer dryer

2 Squeezer cutter system and device

3 Squeezer die mould

PP PE films washing line

PP PE Squeezer Dryer
